| DIMENSIONS |
Length overall: 44.8m (147' 0")
Waterline length: 39.0m (127' 11")
Beam: 9.30m (30' 6")
Draught: 2.72m (8' 11")
Gross tonnage: 430 tons
Displacement: 130 metric tons
Net tonnage: 129 tons |
| CONSTRUCTION |
Hull/Superstructure: Steel / Steel
Deck material: Teak
External Designer: Fry Associates
Internal Designer: Donald Starkey Designs
Naval Architect: Fry Associates |
| CLASSIFICATION & CERTIFICATIONS |
Classifcation Society: American Bureau of Shipping (ABS)
Classifcation Notation: Maltese Cross A1, Yacht Service, AMS |
| PERFORMANCE |
Cruising Speed: 10.0 knots
Maximum Speed: 12.0 knots
Fuel consumption at cruising speed: 125.00 (L/HR)
Range (nm): 5400nm @ 10kn |
| TANKAGE |
Fuel: 75243
Lubrication oil: 1330
Fresh water: 13627
Grey water: 10345
Black water: 909 |
| MACHINERY |
Engines: 2 x CAT 3508 855 HP
Engine hours: Top end overhauling May 2023, less than 500 hrs (16.08.2024)
Generators: 2 x Northern Lights (John Deere) 130 Kw @1800 RPM
Generator hours: Total rebuilt (complete overhaul) on June 2023, 650 hrs (16.08.2024) |
| PROPULSION & STEERING |
Steering: Helmsman Systems Ltd
Propellers: 2
Gearbox: 2x ZF
Bow thruster: Hydraulic |
| STABILISERS |
Stabilisers at anchor: Yes
Stabilisers underway: Yes
Stabilisers details: Quantum Marine |
| Mechanical |
Water maker: 2 x Hem, 2000 gallons per day each unit
Fuel separator: Alfa-Laval
Air-conditioning: 4 x compressors 105000 BTUH each
Waste water treatment: Headhunter MSD
Oily water separator: Cofn World
Toilet system: Tecma, Electric, New
Boilers: 4 x 144 liters |
| ELECTRICAL |
Voltage: Dual voltage – 110 V and 220V
Frequency: Dual 50 Hz and 60 Hz
Shore power converter: Atlas
Inverter: TecPower 90kVa
Batteries: 1050 AMPS Capacity |
| COMMUNICATION & NAVIGATION EQUIPMENT |
COMMUNICATION
Inmarsat: LARS Thrane LT-3100S Iridium GMDSS Satcom
Navtex: Furuno Navtex Receiver NX-500
Fleet 77: Nera F77 (not working)
Broadband Internet Starlink RV + Starlink
GSM: Yes
VHF: Sailor 7222 VHF DSC
Telephone exchange: Panasonic KX TDA 100
VHF hand held radio: Icom IC-M25
Printer / fax: Brother (MFC-J6555DW) + Epson (L14150)
NAVIGATION
Magnetic compass: TMC 20
Gyro compass: 2 X Anschutz Standard 20 1 Anschutz Gyro Repeater
Depth sounder: Furuno FCV-1200L
Sonar: Furuno Searchlight forward sonar CH-270
Autopilot: Anschutz Pilotstar D
Radar: 2 X Furuno Radars FR 2105
Electronic chart system: n1 PC Transas + 1 PC Nobeltec
GPS: 2 X Simrad P2005
Instrumentation system (wind speed & direction): Raymarine ST60+ |
| ENTERTAINMENT |
TV/ DVD: Yes/Yes
Satellite: 2 x Starlink
Music system: Bose + Paradigm High End
Yamaha self-playing piano Blu-ray and Apple TV |
| DOMESTIC APPLIANCES, EQUIPMENT & LAUNDRY |

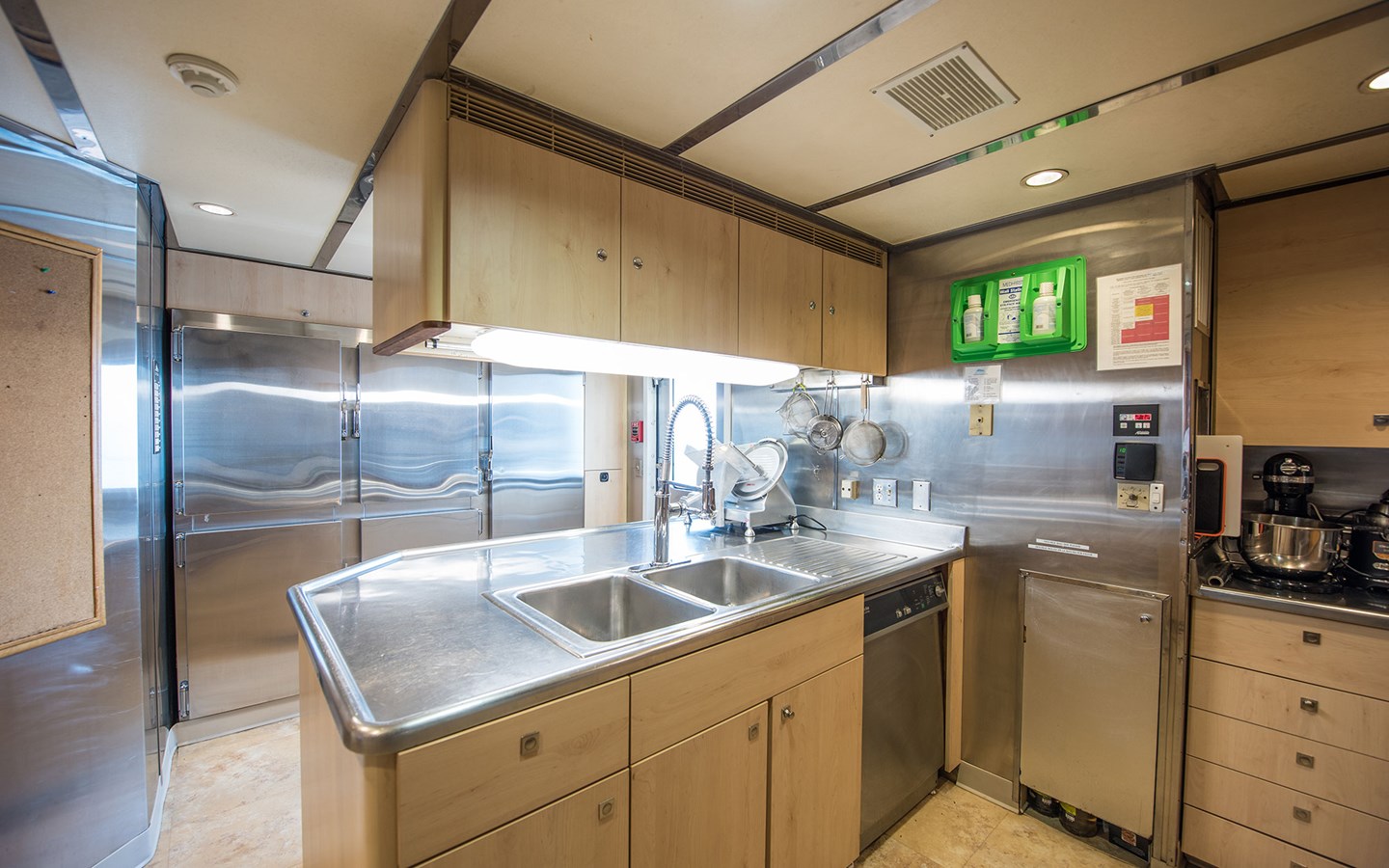

Galley
Commercial Galley on the main deck with crew entrance to port. Nicely equip and updated since build, the galley featuresstainless counters for easy cleanup and sanitary operation, Wolf oven, steam oven and cooktop, Cospolich 5 door refrigerator, Miele G7856 professional dishwasher and Panasonic microwave.
Refrigerator: Cospolich 5 door + walk inn fridge and freezer
Freezer: Cospolich
Oven: Wolf
Stove: Wolf
Microwave: Wolf
Icemaker: Hoshizaki
Dishwasher: Miele Professional
Washing machine: 2 x Miele Professional
Dryer: 2 x Miele Professional |
| ACCOMMODATION |

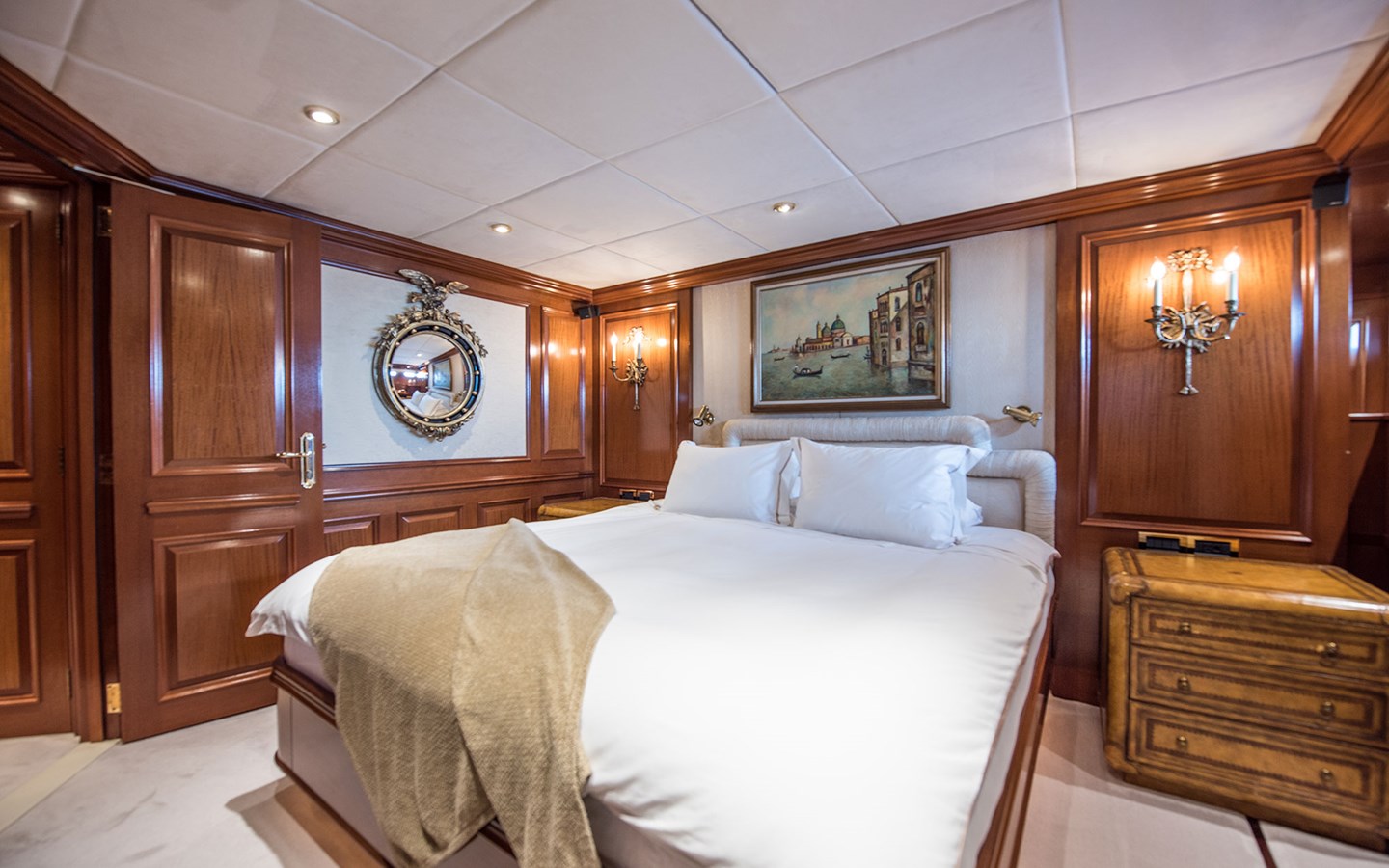

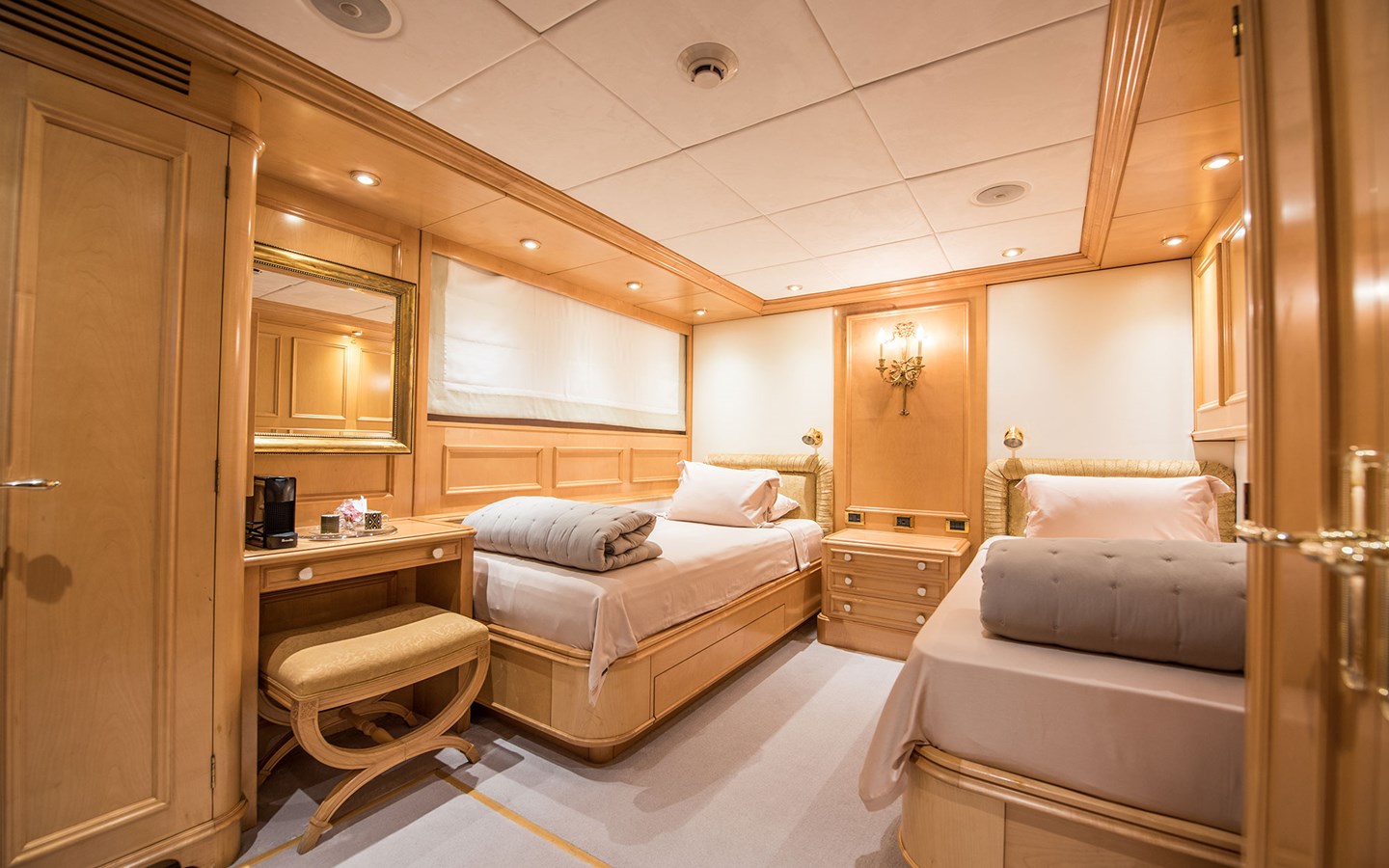

11 guests in 5 staterooms and 9 crew in 5 cabins |
| DECK |
Anchors & chain: 2 x 315kg Poole Galvanized Anchors, 2 x 120m 19mm galvanized stud-link chain
Cranes: Sundeck 1x 910 kg
Windlass: 2 x Thomas Reid, Electric
Passarelle: Yachttech Stainless Steel
Bathing ladder: Stainless Steel
Bimini top: 2
Stern capstans: 2 |
| PAINT JOB |
Paint job completed in January 2022.
Hull painted in Imron with clearcoat barrier and Superstructure painted with Matterhorn White AwlCraft 2000 |
| TENDER & TOYS |
18-foot Dauntless Boston Whaler with 150hp Yamaha

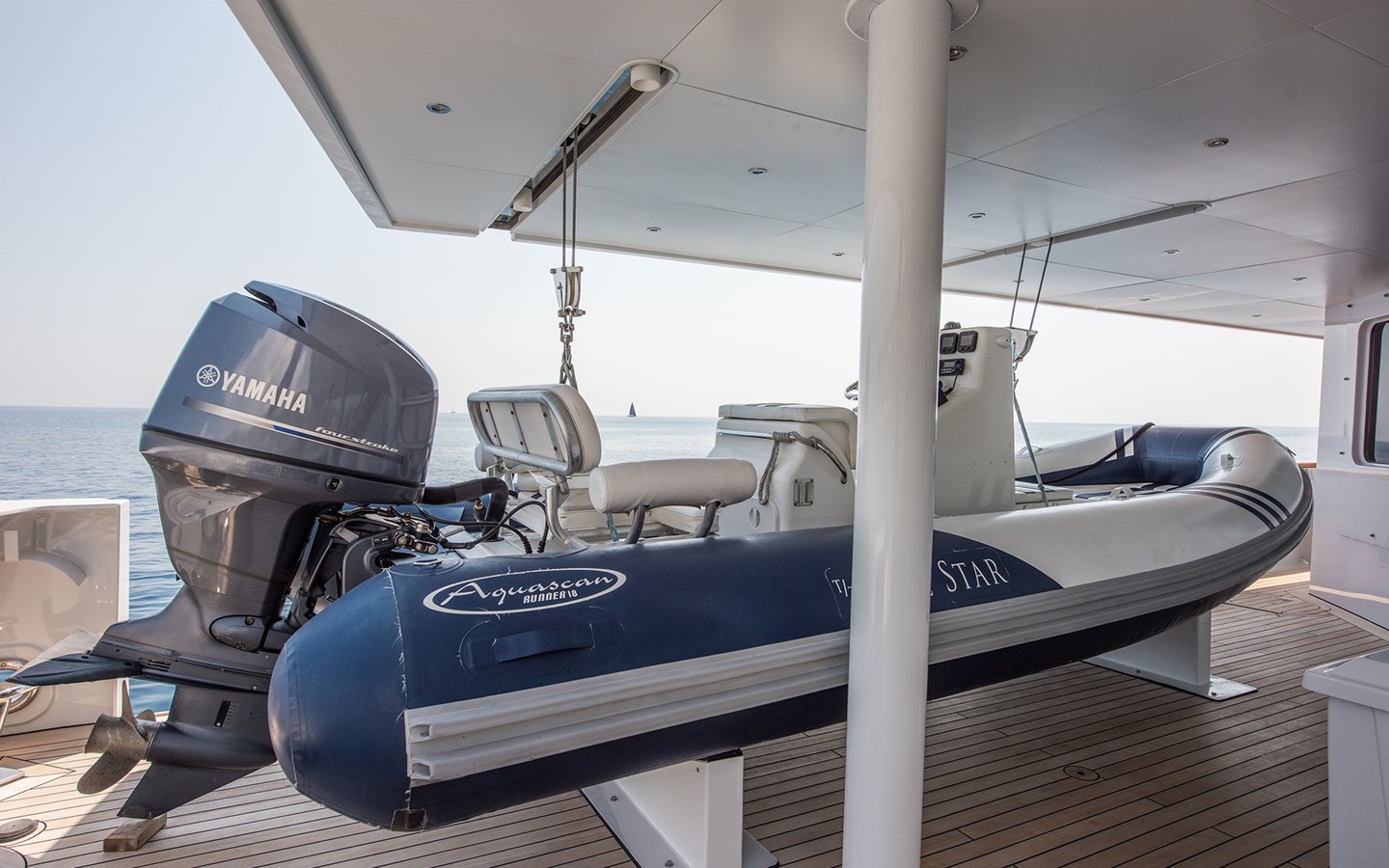

18-foot Aquascan RIB with 115hp Yamaha
Note: Subject to change and/or negotiation during the buying process. |
| DIVING |
2 x Mariner Dive Compressors with Nitrox Generator with 5 G-size bottle storage tanks
Dive tank flling station |
| SAFETY & SECURITY |
EPIRB: ACR 406 + McMurdo 406
Life rafts: 4 x RFD 12 person
Life jackets: 36 pcs + 16 pcs inflatable Ship alarms: MS-9200UDLS
Bilge & fre pumps: 1 bilge + 1 fre + 1 emergency fre pump
Searchlight: Yes
Security cameras: Dahua 11 pcs
Ships safes: Leabank + Mini Vault
Fire–fighting equipment: FM 200 + WHDR 260 + 36 extinguisher + 7 hoses
|
|
